Shaxi Toyota Tundra 5.7 2 inch Lift EVO73A Nitrogen Suspension Kit Compression/Rebound Adjustable
Description
The SHAXI EVO73A Nitrogen Suspension Kit is built for the Toyota Tundra 5.7. It is offered for a 2" lift and has 6-stage rebound and 8-stage compression adjustment. Tune the ride from comfortable daily driving to rough trails and desert tracks.
Key Features
- Made for Toyota Tundra 5.7
- Ride height: 2" lift
- 6-stage rebound adjustment
- 8-stage compression adjustment
- Nitrogen-charged
Vehicle Fitment
| Make | Toyota |
|---|---|
| Vehicle | Toyota Tundra 5.7 |
Adjustment Guide
8-stage compression adjustment controls bump damping to suit different road conditions.
(How to adjust: turn in the direction of the arrow and numbers.)
Settings 1-3: Comfort (paved roads)
Settings 4-6: Standard (desert crossing)
Settings 7-8: Off-road (high-speed corners)
6-stage rebound adjustment controls body stability and rebound speed.
How to adjust: use the supplied 4 mm hex key. Clockwise increases rebound damping, counter-clockwise decreases it; each click is one setting. Fully clockwise = maximum, fully counter-clockwise = minimum.
Settings 1-2: Comfort (rock crawling, city)
Settings 3-4: Off-road (trails, overlanding)
Settings 5-6: Desert (dune running, hardcore off-road)
Specifications
| Brand | SHAXI |
|---|---|
| Series | EVO73A |
| Product type | Nitrogen Suspension Kit |
| Damping adjustment | Compression and rebound |
| Compression settings | 8 |
| Rebound settings | 6 |
| Lift | 2" |
| Gas charge | Nitrogen |
| Position | Front & Rear |
| SKU | SX-074-EVO73A |
Installation

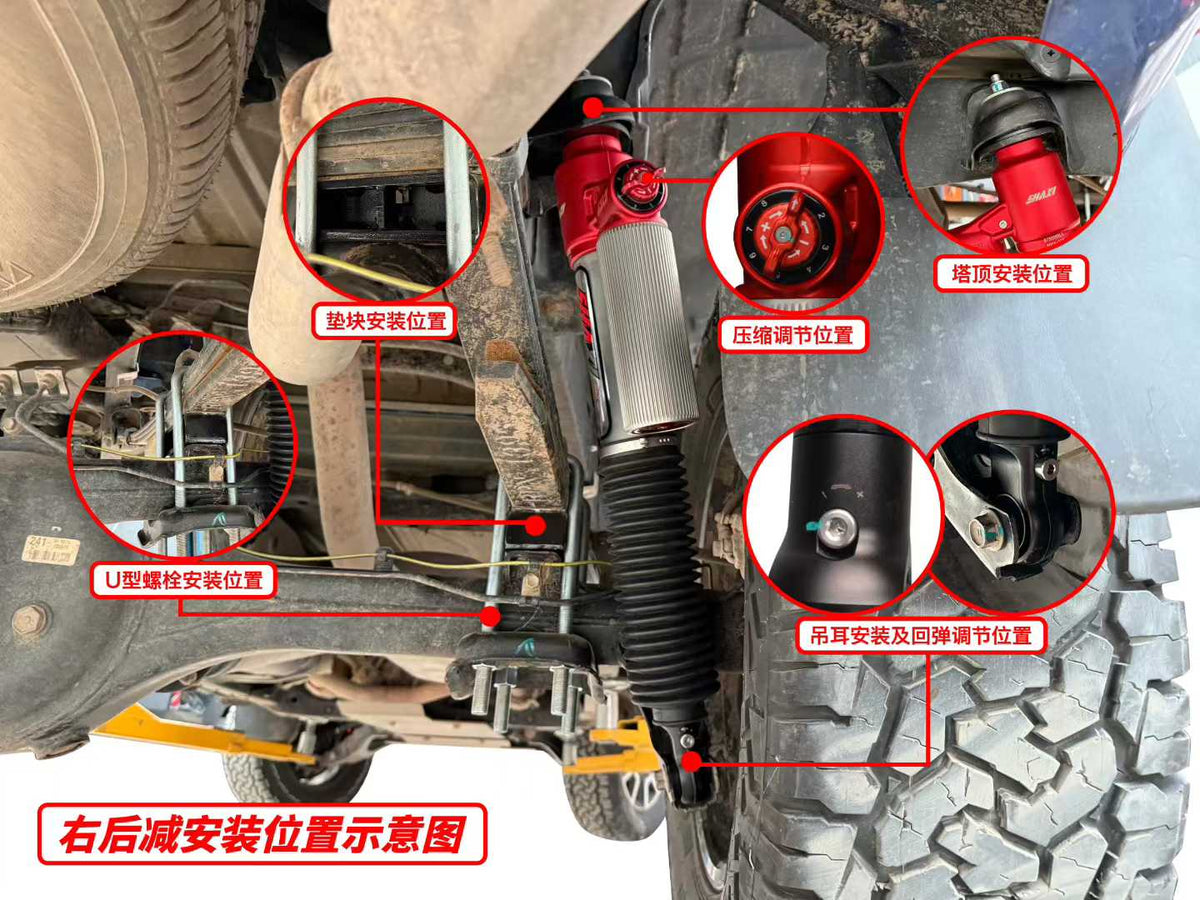

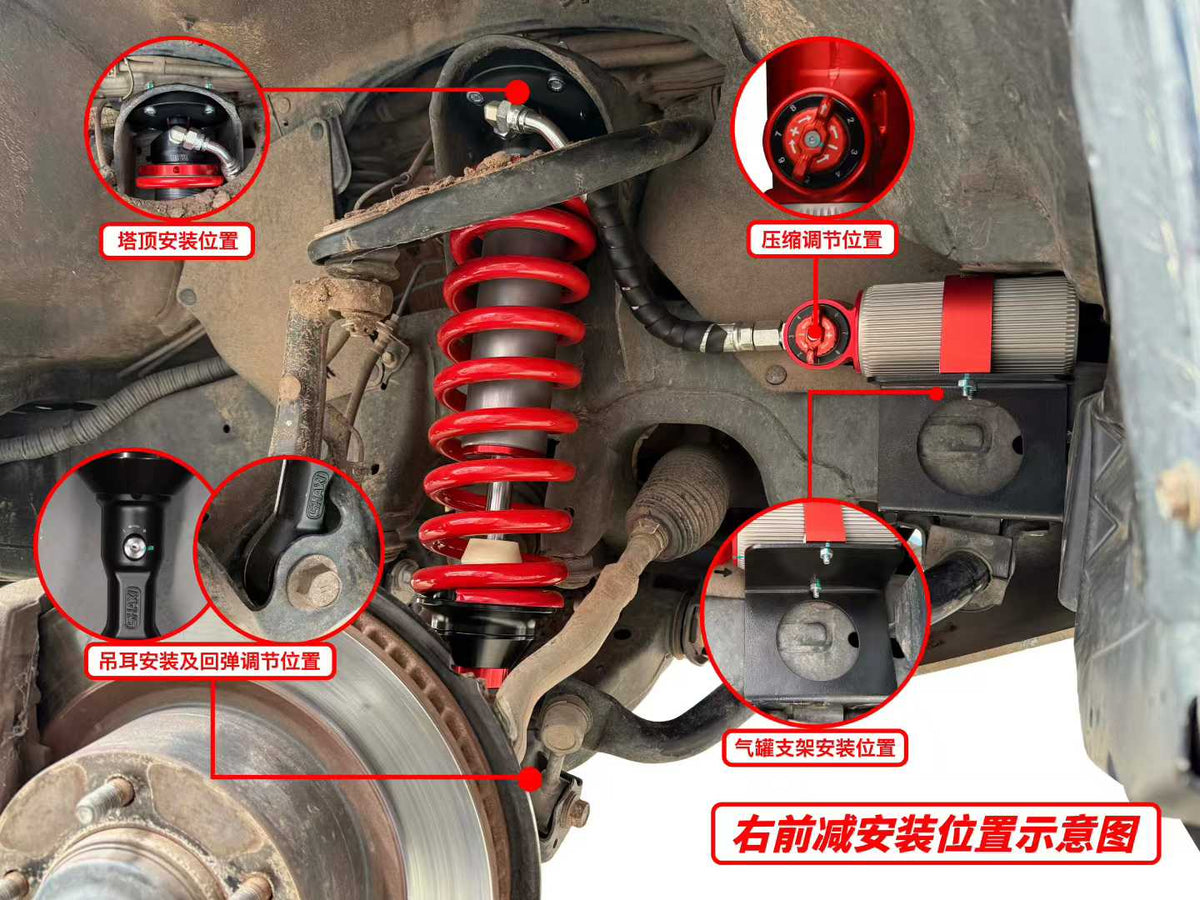

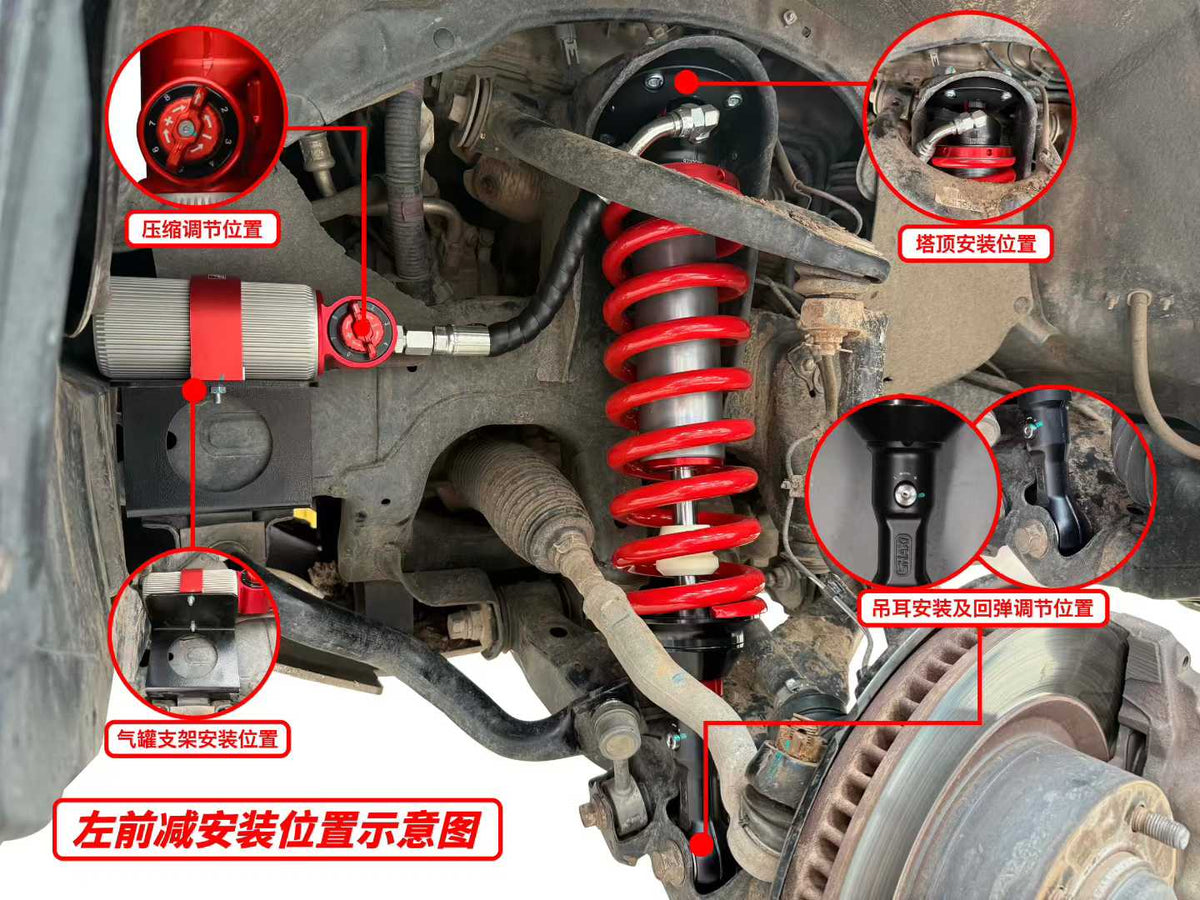

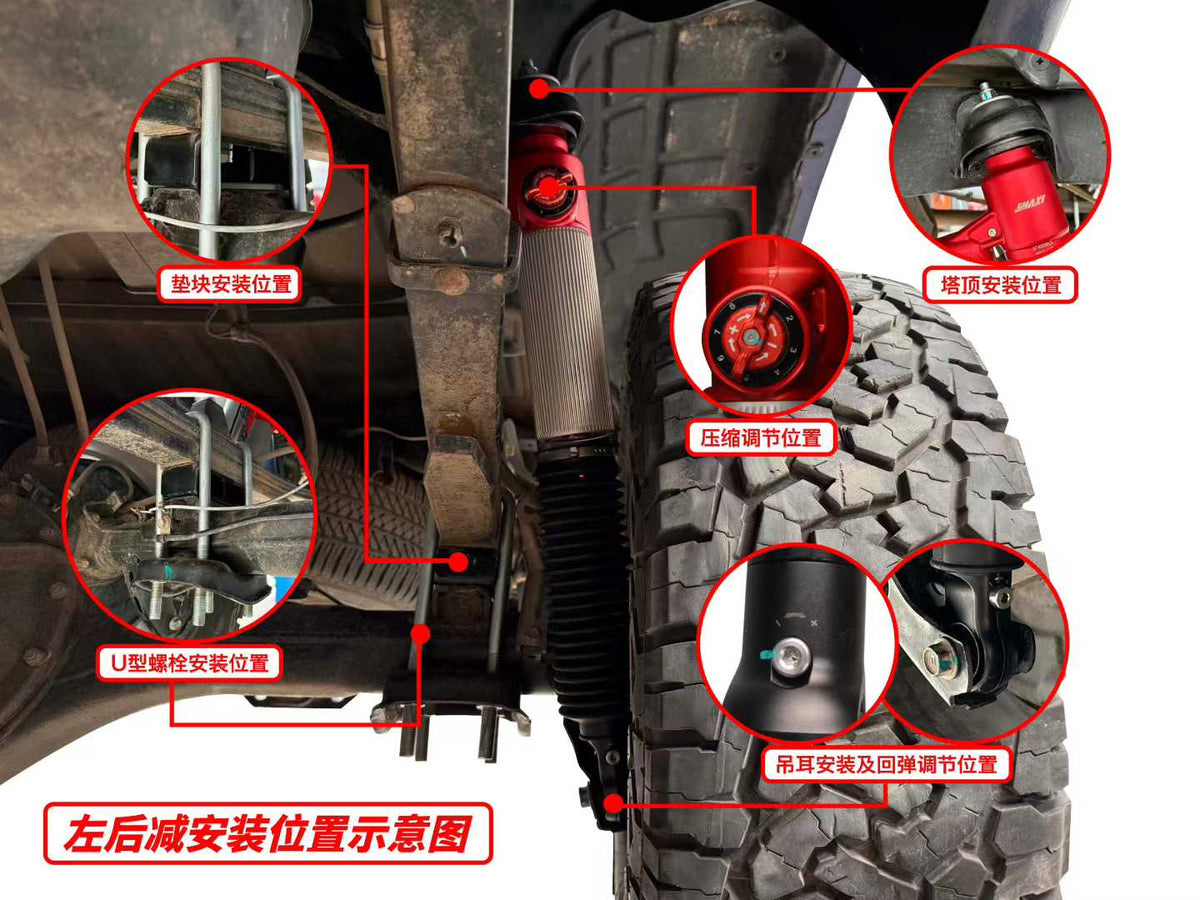

Installation by a qualified 4x4 technician is recommended. A step-by-step photo guide showing the mounting points and adjusters is in the Installation Guide tab on this page.
- Install the left and right rear shock spacers with the low side facing the front of the vehicle.
Other SHAXI Options for Toyota Tundra
- SHAXI EVO73A Nitrogen Suspension Kit – Toyota Tundra 3.5TT (2" lift)
- SHAXI EVO65 Front Second Shocks – Toyota Tundra 3.5TT
- SHAXI EVO65 Front Second Shocks – Toyota Tundra 5.7 (2" lift)
- SHAXI EVO65 Rear Second Shocks – Toyota Tundra 5.7 (2" lift)
- SHAXI EVO73 Nitrogen Suspension Kit – Toyota Tundra 5.7 (2" lift)
FAQ
How do I choose a damping setting?
Start at the comfort settings for daily driving, then add clicks for heavier loads, rough trails or high-speed desert driving. See the Adjustment Guide above.
